PJB INDRAMAYU

Replaced of AB Powerflex 700 drive to INVERTEK drive for hoist 20 ton in PJB Indramayu, West Java. Hoist capacity is 20 Ton, Motor 30KW, 60A, 50Hz, 980Rpm

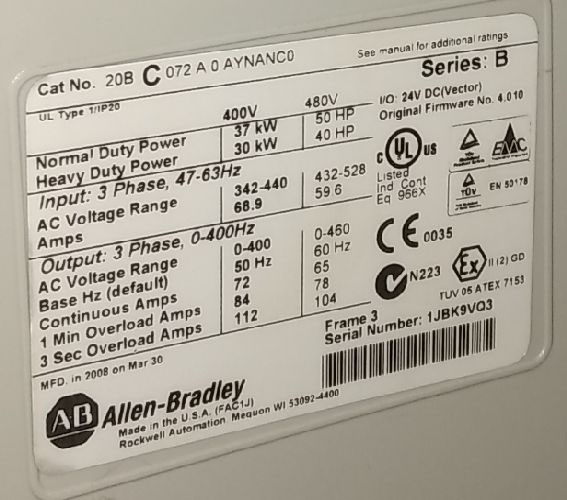

The existing one in the position Catalog No : 20B C 072 A 0 AYNANC0
The new one in the position Model : Optidrive P2 ODP-2-54370-3KF4N-TN

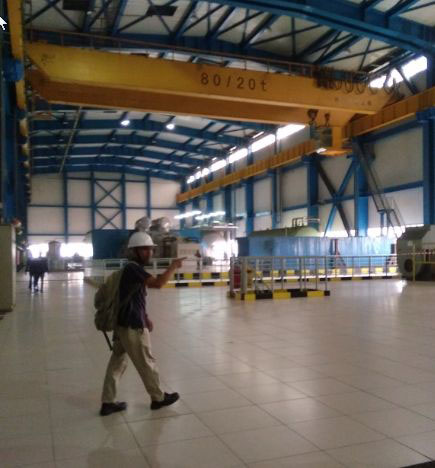

Hoist 80 and 20 Ton crane for Turbin maintenance Power distribution

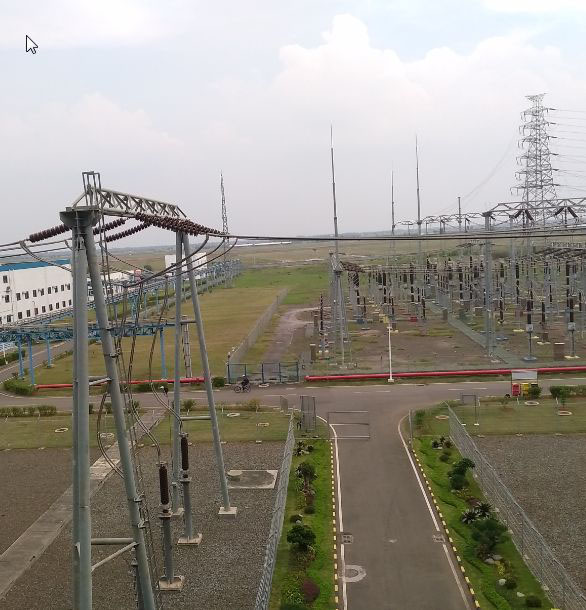

PLTU INDRAMAYU 3 X 330 MW distribution for Java and Bali, Indonesia

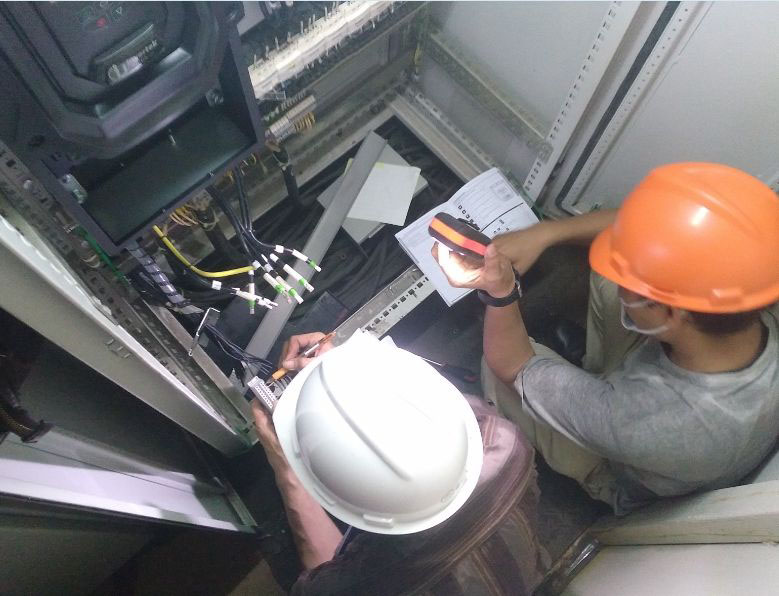

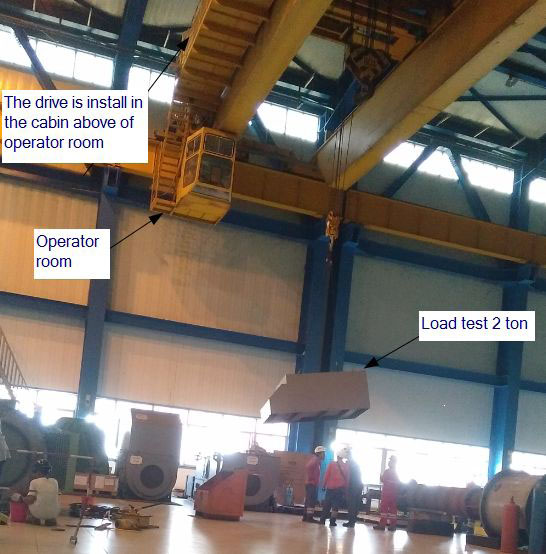

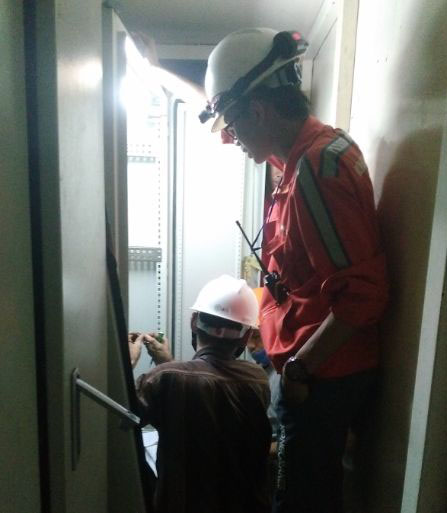

Installation in the cabin with limited space, above of operator room

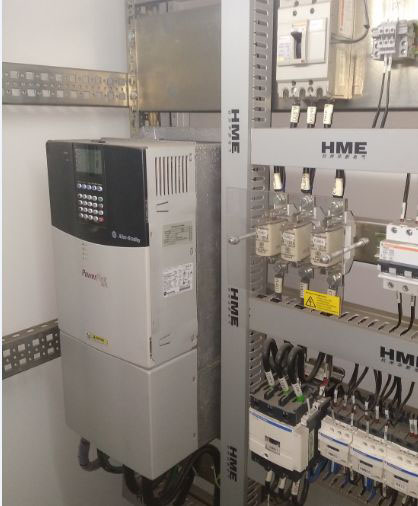

The existing drive for the hoist is : Allen Bradley Powerflex 700
37KW 3P, 400-480V. Cat No 20B C 072 A C A 0 AYNANC0,

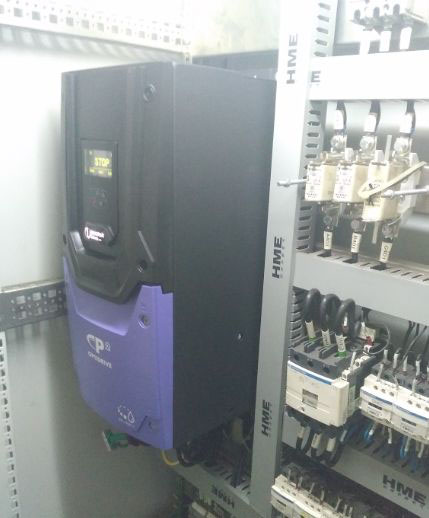

Replaced to Optidrive P2 ODP-2-54370-3KF4N-TN 37KW 3P, 400-480V ( the same specification with the old one )
My Team & Customer.

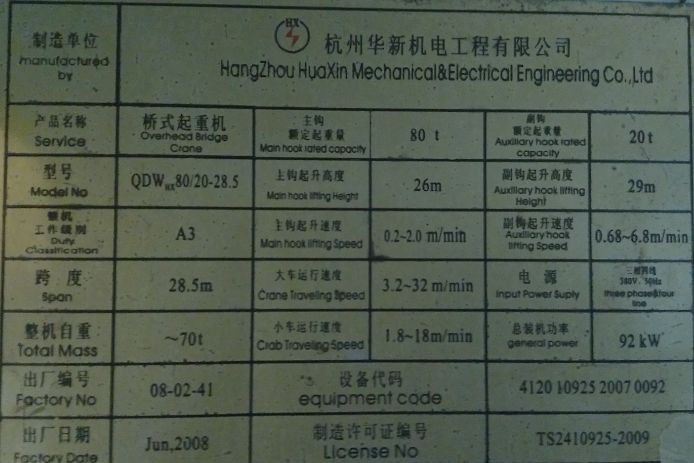

Hoist data specification

Installation guide we used “hoist applications an-odp-2-034 rev1.01” and “an-odp-2-034 using
hoist mode iss03”, it’s not an easy job to have smooth control for rising and lowering, raising,
stop then raising again, lowering, stop and lowering again.
Enable hoist mode by setting P2-18 = 8 is very important and helpful, this is one of benefit of
Optidrive P2, Frequency Ramps to Brake Release Frequency / Speed P2-07, Output frequency
ramps to Brake Apply Frequency / Speed P2-08, Deceleration Time P1-04 and Acceleration Time
P1-03 also the keys factor.


Serang 25 July 2017
Stevan Halim
PT. Gemilang Alves Tama
